• Sign Up! To view all forums and unlock additional cool features

    Welcome to the #1 Dodge, Jeep and RAM Forum dedicated to FCA owners and enthusiasts. Register for an account, it's free and it's easy, so don't hesitate to join the SRT Forum today!


Latest Alignment Specs

TheRedKey

Active Member
Founding Member
Law Enforcement
Member ID
#787
Messages
100
Reactions
98
Likes
27
City
Port St Lucie
State
FL
Country
United States
Vehicle
2016 Challenger Hellcat M6
#1

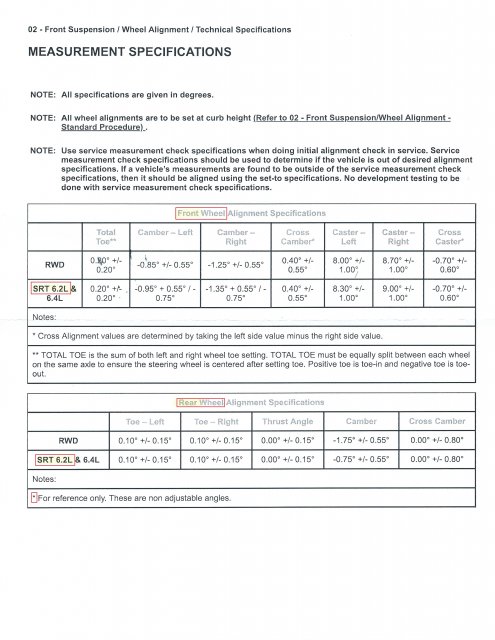

I have seen this come up alot and since Im in the process of lowering and changing out UCAs and UTAs I thought Id give everyone the latest spec sheet from my Dodge dealer (June 02, 2020). The Hellcats are highlighted but its good for the 392s as well.



Attachments

BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,585
Reactions
44,733
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
#2
Thank you for posting



fubar569

1000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1073
Messages
1,142
Reactions
1,620
Likes
162
City
Bradford
State
PA
Country
United States
Vehicle
2018 Charger Hellcat
#3
This makes me happy.

I am actually running -0.05 toe L/R, 0 thrust angle and 0.0 / -0.2 camber L/R in the back.

The front toe was adjusted similar to the rear. That is the only value adjustable from the factory. I have all AAD rear parts. It really helps when you get this stuff closer to 0 for traction.



DGatzby

6000 Posts Club
Founding Member
Premium Account
U.S. Air Force Veteran
Donating Member
HFCOTM & HFCOTY
Member ID
#797
Messages
6,693
Reactions
42,593
Likes
402
City
SW Twin Cities
State
MN
Country
United States
Vehicle
2019 Dodge Challenger Redeye WB
#4
Absolutely agree. Through real world attempts this year that near zero rear toe is the answer. Same goes for no or almost none rear camber. The spec for camber in the front closed down also, but more toe angle is allowed. I actually like all of these new numbers. Thanks for posting.



Member ID
#12350
Messages
2
Reactions
1
Likes
2
City
Clayton
State
NC
Country
United States
Vehicle
2021 Durango R/T Tow N Go
#5
Are these still the latest alignment specs?



fubar569

1000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1073
Messages
1,142
Reactions
1,620
Likes
162
City
Bradford
State
PA
Country
United States
Vehicle
2018 Charger Hellcat
#6
Latest factory tolerances yes.

For drag setups you want as close to 0 as possible or SLIGHTLY positive (like no more than 0.5-1*) so when the car squats on the launch the camber will zero out for the fattest contact patch.



Prange

2000 Posts Club
Member ID
#6682
Messages
2,220
Reactions
7,795
Likes
252
City
no longer in Chicago
State
IL
Country
United States
Vehicle
2021 Charger Scat Pack
#7
Excellent. Thank you for the info.



Member ID
#12350
Messages
2
Reactions
1
Likes
2
City
Clayton
State
NC
Country
United States
Vehicle
2021 Durango R/T Tow N Go
#8
Latest factory tolerances yes.

For drag setups you want as close to 0 as possible or SLIGHTLY positive (like no more than 0.5-1*) so when the car squats on the launch the camber will zero out for the fattest contact patch.
Thanks. I'm just looking for something that doesn't detroy the inner edge of tires.



Finface

Active Member
Member ID
#2078
Messages
319
Reactions
504
Likes
67
City
Morning View
State
KY
Country
United States
Vehicle
2019 Challenger Hellcat Redeye Wide Body
#9
Converting the plus or minus values...easier for me to compare an alignment printout. I doubled checked my math.

Don't know why my document tabbing to align the values didn't translate to the forum post.

SRT Front Tolerances
Total Toe 0.0 to 0.40
Left Caster 7.3 to 9.3
Right Caster 8.0 to 10.0
Cross Caster -0.10 to -1.3
Left Camber -1.7 to -0.4
Right Camber -2.1 to -0.8

SRT Rear Tolerances
Left Toe -0.05 to 0.25
Right Toe -0.05 to 0.25
Camber L/R sides -1.3 to -0.2
Cross Camber -0.80 to 0.80
Thrust Angle -0.15 to 0.15





Top
